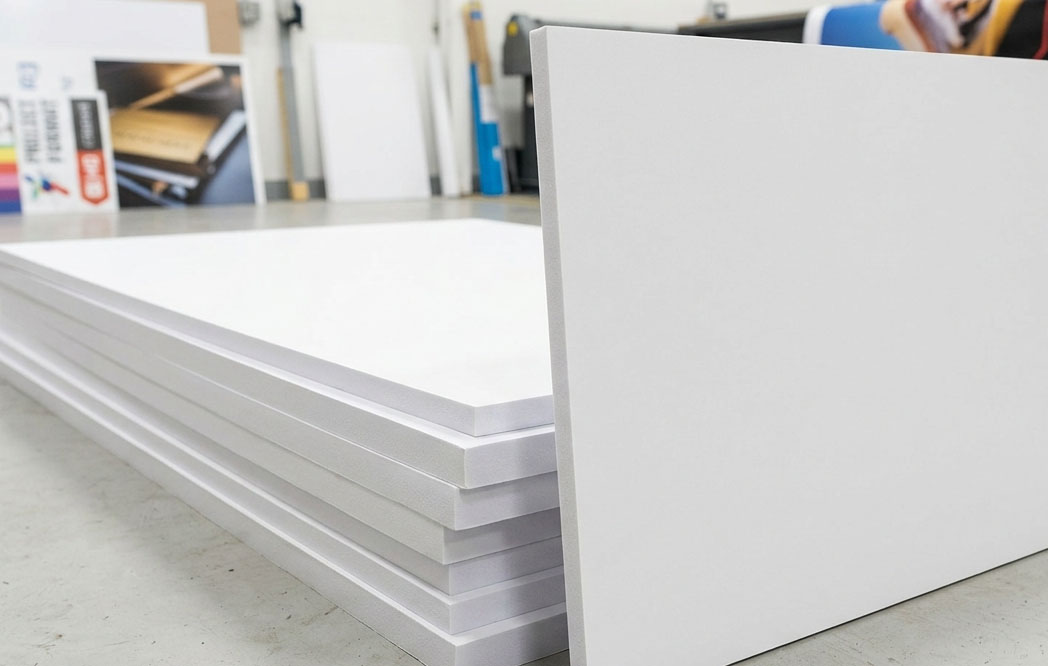

6mm PVC (PVC)

6mm Industrial Printed Solid PVC

When 3mm panels lack the physical thickness and structural muscle required for freestanding or oversized indoor displays, our 6mm PVC is the heavy-duty trade benchmark. Measuring a full quarter-inch thick, this high-density expanded plastic sheet combines remarkable structural flatness with massive impact resistance.

Printed directly on our industrial grand-format UV flatbed tables, the ink forms a permanent mechanical bond with the non-porous matte surface. It is a solid, ultra-rigid substrate that will not dent, chip, crack, or split, making it the absolute finest choice for commercial environments prone to high-traffic wear and physical contact.

Ideal B2B Applications:

• Permanent Commercial Menu Boards: High-end restaurant overhead menus, cafe board matrices, and drive-thru interior backdrops.

• Exhibits & Freestanding Cutouts: Life-size retail character cutouts, structural trade show booth walls, and dimensional photo backdrops.

• Heavy-Duty Interior Directional: High-traffic airport directories, hospital ward maps, and school campus directional panels.

• Industrial Control Board Backers: Durable equipment placards, marine interior dash facers, and factory safety staging maps.

⚠️ The Outdoor Thermal Warning (Trade Liability Shield)

While 6mm PVC is 100% waterproof and moisture-immune, expanded PVC has a high coefficient of thermal expansion. Intense outdoor sunlight and heat will cause dark-printed 6mm panels to warp, bow, or "oil-can" if restricted by rigid fasteners. Titan Signs strictly recommends 6mm PVC for interior specifications or temporary exterior events only. For permanent outdoor rigid signage, please upgrade to our structural 6mm ACM.

Technical Specifications:

• Thickness: 6mm (Nominal 0.236" / Heavy 1/4" Class)

• Substrate Profile: High-Density Solid White Polypropylene PVC with a uniform low-glare matte finish.

• Print Engine: Direct UV-LED Flatbed (Single or Double-Sided)

• Shatter Resistance: 100% Shatterproof and impact-safe (Ideal for public spaces and schools).

• Weight: Approx. 0.92 lbs per sq. ft. (Requires heavy-duty wall anchors, structural adhesive, or mechanical framing).

Pre-Press & Structural CNC Routing Notes:

• The Premium Block Edge: Routed exclusively on our heavy-duty automated CNC beds, leaving a perfectly squared, micro-smooth white satin edge that looks incredibly high-end and completely eliminates the need for edge-capping.

• Fastener Clearance & Drilling: If selecting pre-drilled holes in the pricing calculator, our CNC routes standard 0.25" mounting holes. Keep all critical text, phone numbers, and logos at least 0.50" away from the outer edgesto clear heavy mounting screws and caps.

• Custom Shape Outlines: Supply a 100% scale vector file containing a closed, continuous vector stroke named CutContour set as a 100% Magenta spot color. Keep internal corner radii to a minimum of 0.125" to clear heavy router bits.
